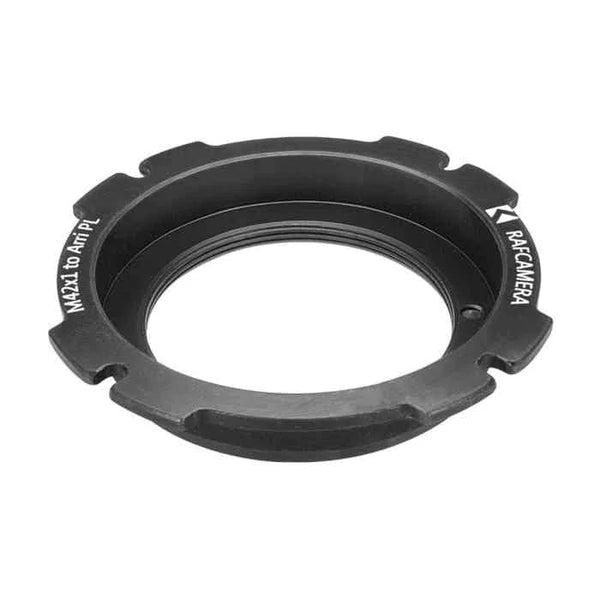

M42x1 Lens to Arri PL Camera Mount Adapter, Improved

Product Features:

• Front side: M42x1 female thread
• Rear side: Arri PL mount

The adapter allows using M42x1 lenses (for Zenit, Praktica cameras) on cameras with Arri PL mount.

Actually, not every lens will fit it since it is necessary to recess the adapter into Arri PL mount to match FFD (to allow infinity focus). So, you'll be able to install any lens that is narrow enough in the rear part - less than 53mm diameter (see the drawing with important dimensions).

This 53mm is the maximum that can be achieved for this type of adapters.

There are cut-outs on all 4 bayonet lugs to provide 4 mounting positions (you may want to position a lens' index mark to different sides for an assistant job, for example).

Distinctive feature from competing offers is the set screw in the M42 flange. It allows securing a lens position so you can't unscrew the lens accidentally if the focus ring is tight. The screw comes from the rear side and doesn't damage a lens thread. Black color prevents light reflections.

The adapter is made of high-quality aluminium alloy, anodized to black color, and laser engraved.
