Dual Axis MECHA C2 Controller
Here comes the MECHA C2 controller, a dedicated dual axis controller with an OLED display and external battery.
The display can guide you through all the major operations and settings, making C2 much more intuitive than the single axis C1 controller with LED indicators only.
The use of external battery means you can carry spare batteries and quickly refuel MECHA before or during a shooting section.
A power cable splitter (optional) is available for using 2 sets of batteries at the same time for extended operation and / or changing batteries without a pause.

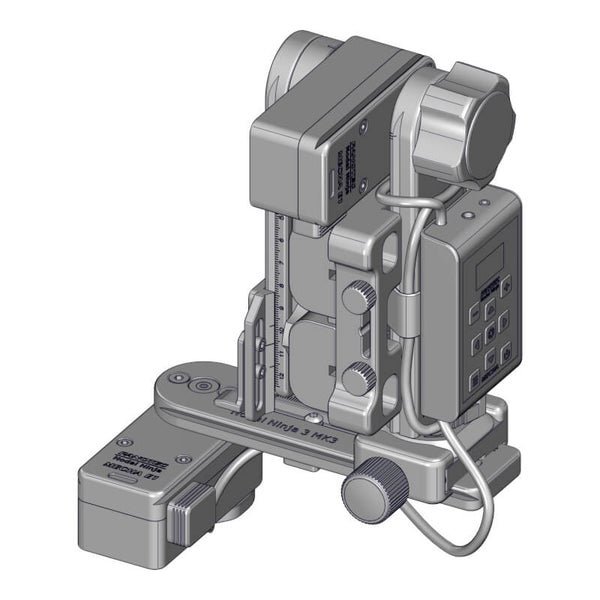

Dual Axis Mecha E1 C2 w/NN3 MK3 and Nadir Adapter
Finally a compact and affordable "dual-axis" pan tilt head solution. We use parts from NN3 MK3, together with 2 MECHA E1 Rotators, a C2 Controller and a dual battery holder.
Use as a single-axis horizontal rotator single row shooting or for turntable object VR. Or use as a dual-axis rotator for both horizontal and vertical movements. The MECHA E1 and C2 being modular in design will be compatible with future Mecha rotators and controllers paving the way for future low-cost upgrade paths.
This setup supports a camera/lens up to 2 kg (2.75 lb) and a turning torque of 16 kg-cm (13.9 lb-in). NPP adjustment is up to 110mm from the pivot point. It is ideal for mirror-less, compact and lighter DSLR cameras. Shoot 360° panoramas or even high-resolution gigapixel images.
IMPORTANT: Batteries (2 x NP-F550) and charger are NOT included! Please choose them separately:
- 2ea MECHA E1 Rotators
- MECHA C2 Controller
- NN3 MK3 Lower Rail
- NN3 MK3 Upper Horizontal Rail
- NN3 MK3 Vertical Rail
- Dual Battery Holder (Side by Side)
- 1.2m Long Shutter release cable compatible with Dual-Axis Mecha
Mecha Users Guide for C2 controllers: Download here
Other manuals can be found here.
Please select your shutter release cable:
Canon RS-C1 (2,5mm) compatible with
Canon EOS R, 60D, 70D, 77D, 80D, 1100D, 1000D, 750D, 600D, 550D, 500D, 450D, 400D, 350D, 300D, Rebel T1i, T2, T2i, T3, T3i T4i, T5, T5i, T6i, T6s, SL1, SL2, XSi, Rebel XS, Rebel XTi, Rebel XT, Rebel, Kiss X3 Digital, Kiss X2, Kiss X, Kiss N, Kiss F, Kiss, EOS ELAN 7/7E, ELAN 7NE, ELAN II/IIE, Rebel 2000, Rebel GII, Rebel G, Rebel T2, Rebel Ti (uses Canon E3 connector), and others...
Canon Powershot G16 / G10 / G11 / G12 / G15 / G5x / G3x / G1x / G1x Mk II, and others...
Olympus OM-D E-M1 Mark II, OM-D E-M1X, OMD EM1 Mark III, E-M5 Mark III, replaces original Olympus RM-CB2
Pentax 645Z, K-1, K-01, K-3, K-5, K-7, K200D, K110D, K100D, K100D Super, K20D, K10D, MZ-6, MZ-L, ZX-L, *ist D/DS/DS2/DL/DL2/K10
Contax N Digital, 645, NX, N1
Samsung GX-1S, GX-1L, GX-20, GX-10
Sigma SD1, SD1 Merrill, SD15
Canon RS-C3 compatible with
Canon EOS 50D, 40D, 30D, 20D, 20Da, 10D, 7D, 7D Mark II, 6D, 6D Mark II, 5D, 5D Mark II, 5D Mark III, 5D Mark IV 1Ds, 1Ds Mark II, 1Ds Mark III, 1D, 1D Mark II, 1D Mark IV, 1D-X, 1D-X Mark II, D60, D3, and others...
Nikon MC-DC2 (N3) compatible with
Nikon Z6, Z7, Df, D90, D600, D610, D750, D3100, D3200, D3300, D5000, D5100, D5200, D5300, D5500, D5600, D7000, D7100, D7200, and others...
Nikon MC-30 (N10) compatible with
- Nikon D850, D810./D810A, D800/D800E, D700, D500, D300/D300S, D200, D100 (via MB-D100 battery grip), D5, D4/D4s, D3X, D3, D2H, D2X, D2Xs, D1X, D1H, D1, F100, F90X, F90, F6, F5, and others...
- Kodak DSC-14n. DSC Pro SLR/n, DSC Pro SLR/c, and others...
- Fujifilm FinePix S5 Pro, S3 Pro, and others...
Sony RM-VPR1 compatible with
Sony A58, NEX-3NL, A7, A7III, A7R, A7RII, A7RIII, A7SII, A9, A3000, A6000, HX300, RX100 II, RX10 IV, and others...
Sony RM-S1AM compatible with
Sony A35, A33, A35, A37, A55, A57, A65, A67, A77, A99, A550, A580, A700, A850, A900, and others...
Olympus UC1 compatible with
- Pen XZ-1, E-PL2, Ep-1, Ep-2, E-P1, EVOLT E-620, E-520, E-510, E-450, E-420, E-410, E-400, E-30, SP-590UZ, SP-570UZ, SP-565UZ, SP-560UZ, SP-550UZ, SP-510UZ, OM-D E-M5, OM-D E-M5 MarkII, OM-D E-M1, E-PM2, and others...
Panasonic CL-L1 compatible with
Panasonic DMC-FZ50，DMC-FZ50K，DMC-FZ50S, DMC-FZ30，DMZ-FZ150，DMC-FZ30K, DMC-FZ30S, DMC-FZ20 and others...
Leica V-LUX 1, DigiLux 3, DigiLux 2
Fujifilm RR-100 compatible with
- Fujifilm GFX 50S, GFX 50R, X-H1, X-Pro2, X-T4, X-T3, X-T2, X-T1, X-T20, X-T10, X-T100
- Fujifilm X-E3, X-E2S, X-E2, X-E1, X-A5, X-A10, X100F, X100T, X70, X30, XF10
If your camera model or compatible shutter release cable is not listed please contact us.
Note pictures shown above include some other items for demonstration purpose only.
